• 1 LCD Monitor In The Front
• 2 12V DC Power Outlets
• 4 Speakers
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Air Filtration
• Analog Appearance
• Day-Night Rearview Mirror
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Front Center Armrest w/Storage
• Front Cupholder
• Front Map Lights
• Full Cloth Headliner
• Full Vinyl/Rubber Floor Covering
• HD Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder, storage and driver's side manual lumbar
• Illuminated Locking Glove Box
• Instrument Panel Covered Bin and Dashboard Storage
• Interior Trim -inc: Chrome Interior Accents
• Manual 1st Row Windows
• Manual Adjustable Front Head Restraints
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge
• Passenger Visor Vanity Mirror
• Radio w/Clock
• Radio: AM/FM Stereo -inc: 4 speakers
• Trip Computer
• Urethane Gear Shifter Material

• 10980# Maximum Payload
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 4.88 Axle Ratio
• 40 Gal. Fuel Tank
• 50-State Emissions System
• 78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
• Dual Rear Wheels
• Firm Suspension
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 18,000 lbs Payload Package
• HD 240 Amp Alternator
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Manual Locking Hubs
• Manual Transfer Case
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Towing Equipment -inc: Trailer Sway Control
• Trailer Wiring Harness
• Upfitter Switches

• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Driveline Traction Control
• Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
• Safety Canopy System Curtain 1st Row Airbags
• Side Impact Beams

ENGINE: 6.8L 3-VALVE SOHC EFI NA V10

• CNG/Propane gaseous engine prep
• hardened engine intake and valve seats
• This package does not include CNG/Propane fuel tanks
• lines
• etc
• Vehicle will be equipped w/the standard factory gasoline fuel system
• Additional equipment combined w/Certified calibration reflash is required
• from an external upfitter
• to convert the vehicle to a CNG/Propane fueled vehicle
• See Alternative Fuel Buyers Guide: www.ford.com/altfuelbuyersguide (STD)

• ENGINE: 6.8L 3-VALVE SOHC EFI NA V10 -inc: CNG/Propane gaseous engine prep hardened engine intake and valve seats This package does not include CNG/Propane fuel tanks lines etc Vehicle will be equipped w/the standard factory gasoline fuel system Additional equipment combined w/Certified calibration reflash is required from an external upfitter to convert the vehicle to a CNG/Propane fueled vehicle See Alternative Fuel Buyers Guide: www.ford.com/altfuelbuyersguide (STD)
• Four Wheel Drive
• Power Steering
• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Adjustable Steering Wheel
• Trip Computer
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• Trip Computer
• Traction Control
• Stability Control
• Traction Control
• Front Side Air Bag
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag

• Brakes
• Brake ABS System (Second Line): 4-Wheel
• Brake ABS System: 4-Wheel
• Brake Type: 4-Wheel Disc
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.7
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 240
• Exterior Dimensions
• Cab to Axle (in): 84
• Cab to End of Frame (in): 131.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Height, Overall (in): 81.1
• Length, Overall (in): 254.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Wheelbase (in): 169
• Width, Max w/o mirrors (in): 80
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Interior Dimensions
• Front Head Room (in): 40.8
• Front Hip Room (in): 62.5
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Passenger Capacity: 2
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.5
• Summary
• Body Code: H
• Body Style: SD Regular Cab

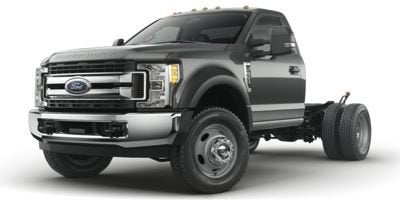

• Vehicle Name: Ford Super Duty F-550 DRW
• Suspension
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13660
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Tires
• Front Tire Capacity (lbs): 7500
• Front Tire Order Code: TFB
• Front Tire Size: LT225/70SR19.5
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: TFB
• Rear Tire Size: LT225/70SR19.5
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5025
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 20100
• Maximum Trailering Capacity (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Weight Information
• Base Curb Weight (lbs): 7016
• Curb Weight - Front (lbs): 4015
• Curb Weight - Rear (lbs): 3001
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13660
• Gross Combined Wt Rating (lbs): 28000
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 X 6
